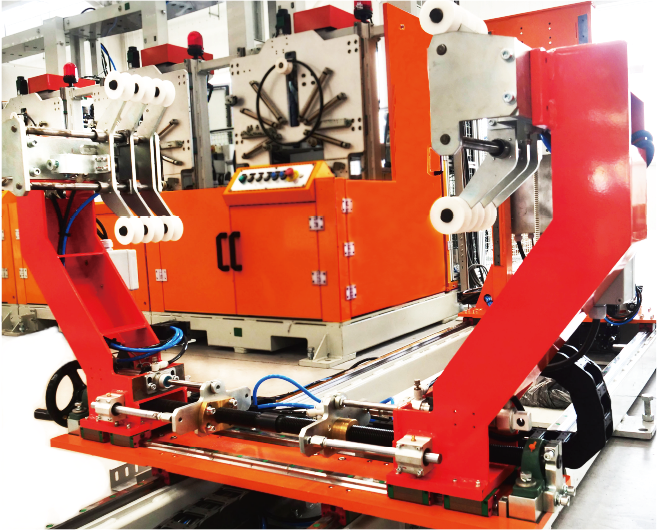

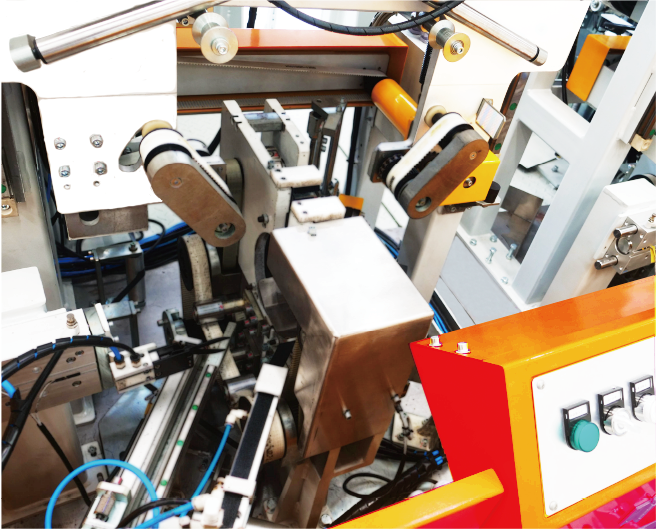

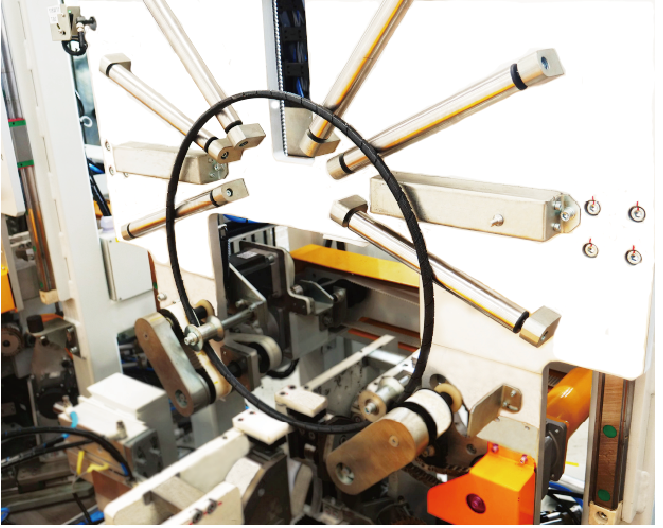

Automatic bead wrapping machine

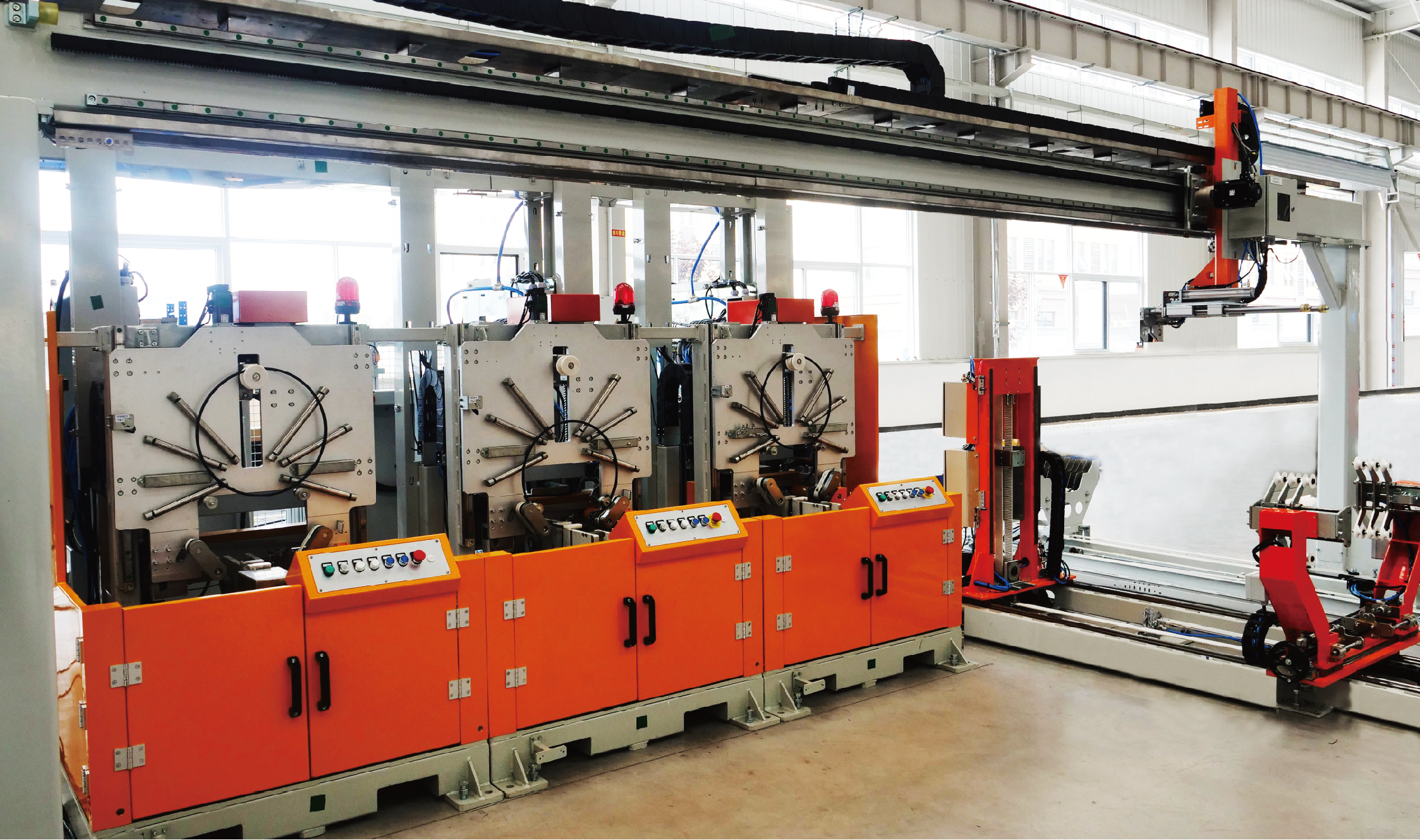

This productis used for automatic bead wrapping in a spiralway. The chafer is fed ffom a large material spoolwhere the chaferiswinded in a spiralway, which can reduce human cost and working intensity. By using the automatic bead logistic line, which can beintegrated with the bead production line and hot apexing line, the automatic production difficulty in this process can be solved. Theproduct has filled the gap of tire industry.
Request a Quote Now
Core Strengths
01
More intelligent
one-key start control, rapid size change；
02
Full-automatic
Auto-load and auto-unloading、auto-splicing、auto-storge；
03
Higher stability
Pre-maintenance and machine failures self-analyse,Real-time health detection of core component；
04
Higher efficiency
Machine modular design, ready for customization.
Technical Specifications
| Item | Parameter | Unit |
Remark |
Bead diameter |
16-24.5 | inch |
|
Bead type |
egular hexagon/oblique hexagon | ||
| Inner diameter of bead | 300~630 | mm | |
| Bead width | 5-35 | mm | |
| Bead height | 5-35 | mm | |
| Chaferthickness | 0.8~1.2 | mm | |
| Tolerance for length | ±10 | mm | |
| Chafer width | 5~30 | mm | |
| Winding type | winding for preset length | ||
| Chafer space | chafer space: 0-4mmtolerance of chafer space+0.5mm | ||
| End of chafer | cutting smooth | ||
| Chafer tension | More firm | ||
| Production efficiency | ≤30 | sec/bead | 22.5”, chafer width-25mm |
| Max diameter of chafer spool | 500 | mm | |
| Chafer festoon length | ＞10 | m |
