Automatic horizontal bead apexing lines for OTR

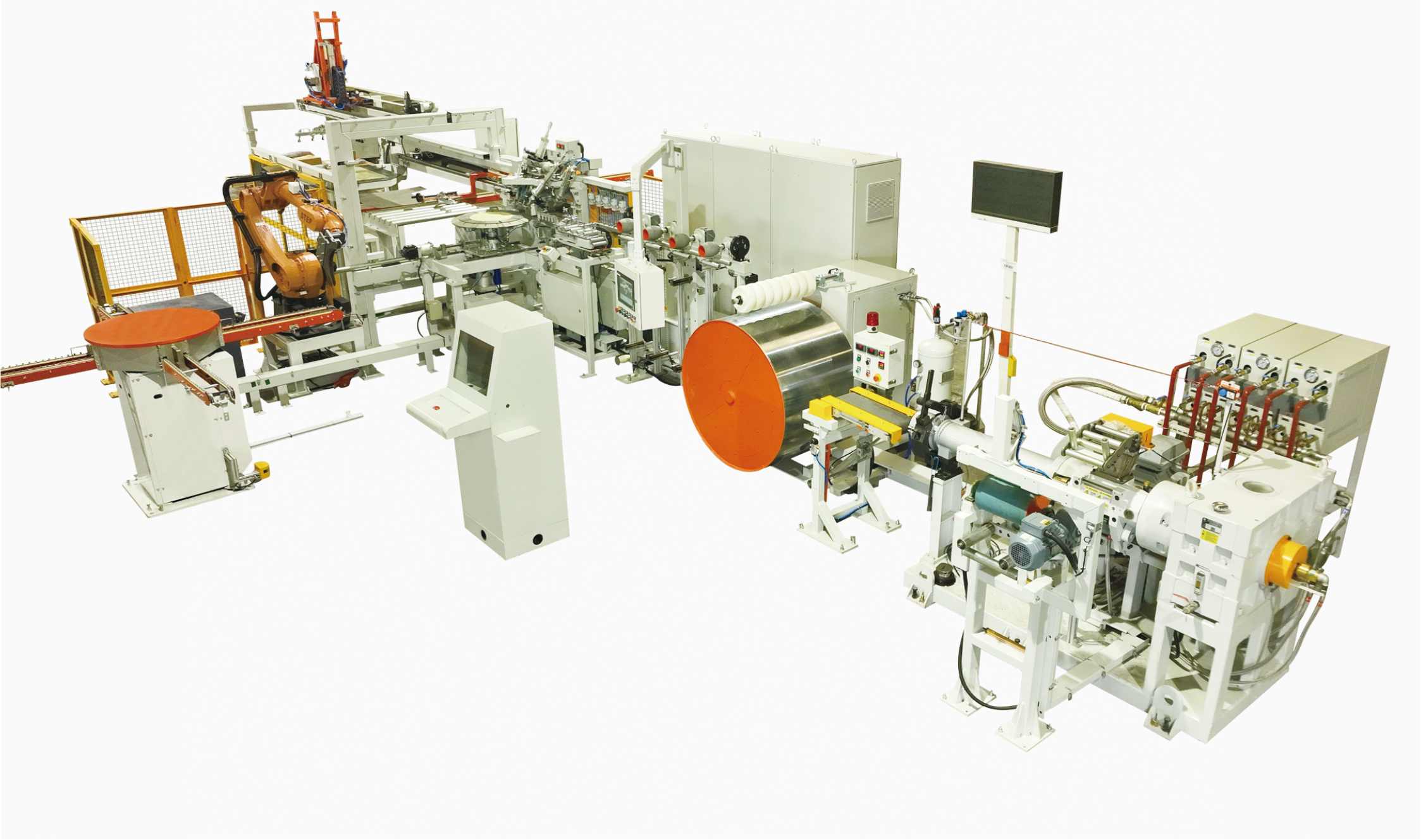

OTR bead automatic manufacturing machine for off-highway tire production customers such as bias tires and engineering tires, using horizontal laminating process, automatic making high-quality off-highway tire bead.

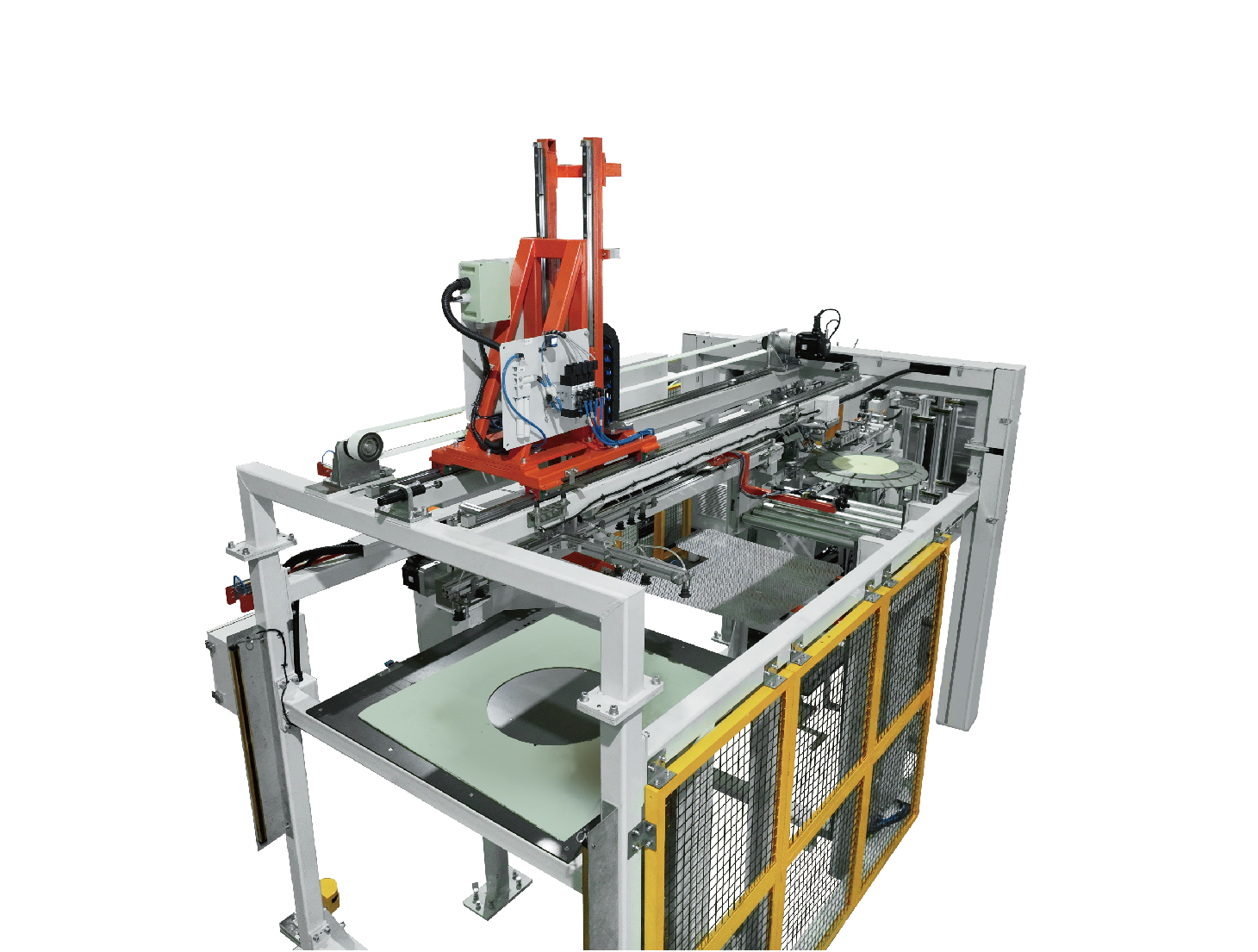

OTR bead automatic manufacturing machine r mainly consists of extruding system, cooling system, fit the host, robot  up/down wire ring system, tire bead palletizing system, isolation sheet conveying system, etc. And docking with the factory MES system can realize the digital management and intelligent control of the production process, improve the height and accuracy of tire bead, reduce costs, and improve the competitiveness and sustainable development ability of enterprises.


Request a Quote Now

Core Strengths

01
More intelligent
Replacement specification simply andconveniently, switched with one key;
02
Full-automatic
No need for manual participation;
03
Higher stability
Equipped with pre-maintenance and self-diag-nosis system, real-time detection of core components,automaticoperation of equipment;
04
Higher efficiency
cycle times7 seconds/pc;
05
Low energy consumption
Equipped with energy managementsystem, real-time monitoring equipment energy consumption.

Technical Specifications

Item Parameter

Unit

Remark

Bead diameter

15"~38"

inch


Apex height

15~45 mm
Apex thickness 6~22
mm
Cycle time ≤7

S/pc

15"
