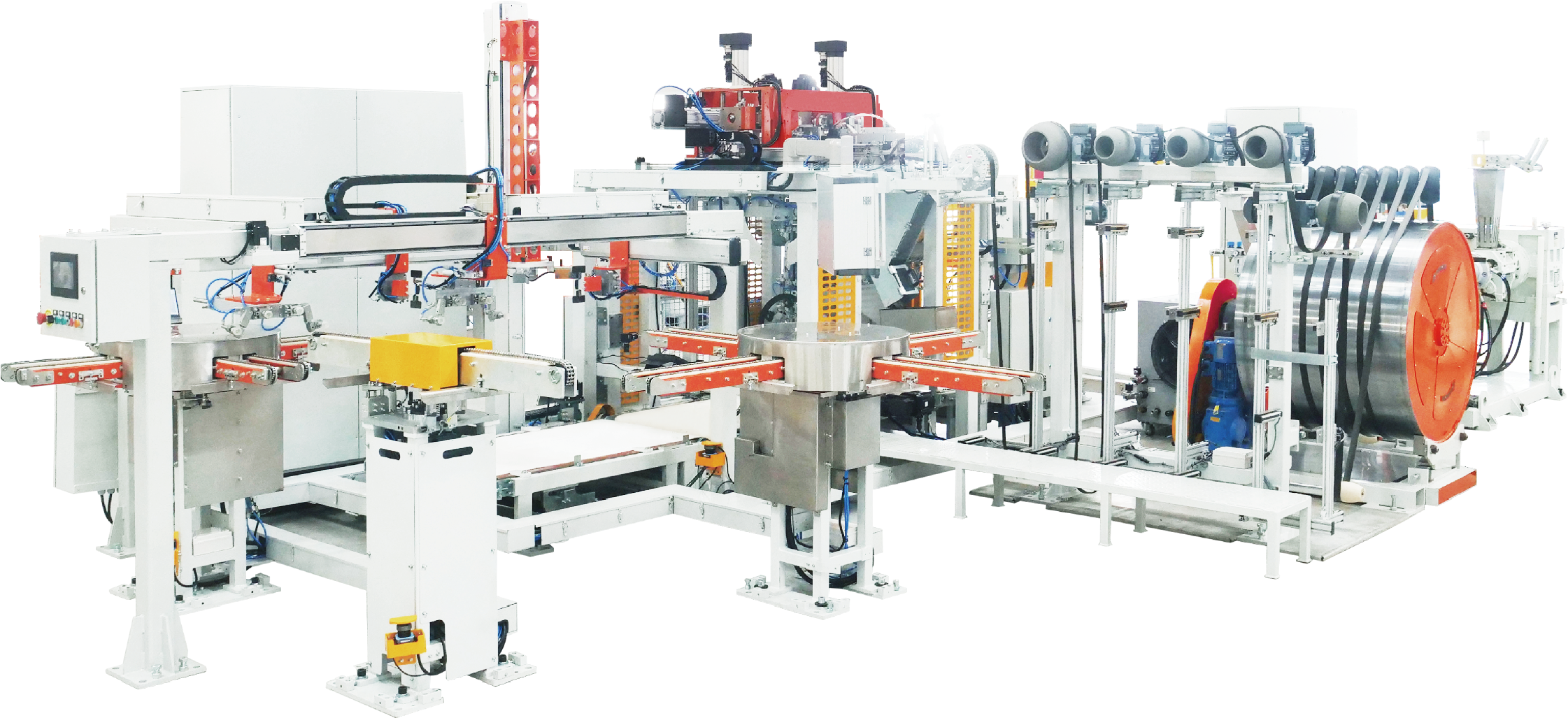

Automatic vertical bead apexing lines for PCR tires

PCR vertical bead automatic manufacturing machine is used to produce tire bead for semi-steel tire by vertical laminating process.

The PCR vertical machine is composed of extruder, Cooling drum, storage device, intercepting and shrinking device, fit the host, wire ring hanger, wire ring conveying, tire bead conveying, tire bead hanger, isolation plate hanger, isolation plate conveying, etc., and interconnecting with the factory MES system, can realize the digital management and intelligent control, improve production efficiency and accuracy, and reduce management costs. Improve the competitiveness and sustainable development ability of enterprises.


Request a Quote Now

Core Strengths

01
Intelligent
Digital adjustment of roller position to achieve formula management;
02
Higher efficiency
Fully automatic control of conveying, pressing, taking and placing.The shortest cycle efficiency is 7 seconds/PC;
03
Higher stability
Laser positioning with servo drive, fixed length accurate,Joint stability;
04
Informatization
Open information interface, access MES production management system, production process comprehensive monitoring;
05
Higher flexibility
Modular layout to meet a variety of functional and space requirements.

Technical Specifications

Item

Argumen

Unit

Remark

bead diameter

12~28

inches

12”~20”、19”~24”、21~28”

APEX height

15~65 mm

cycle time

7

S/pc


Lap accuracy of APEX joint

≤1 mm

APEX interleaving accuracy

≤2 mm
