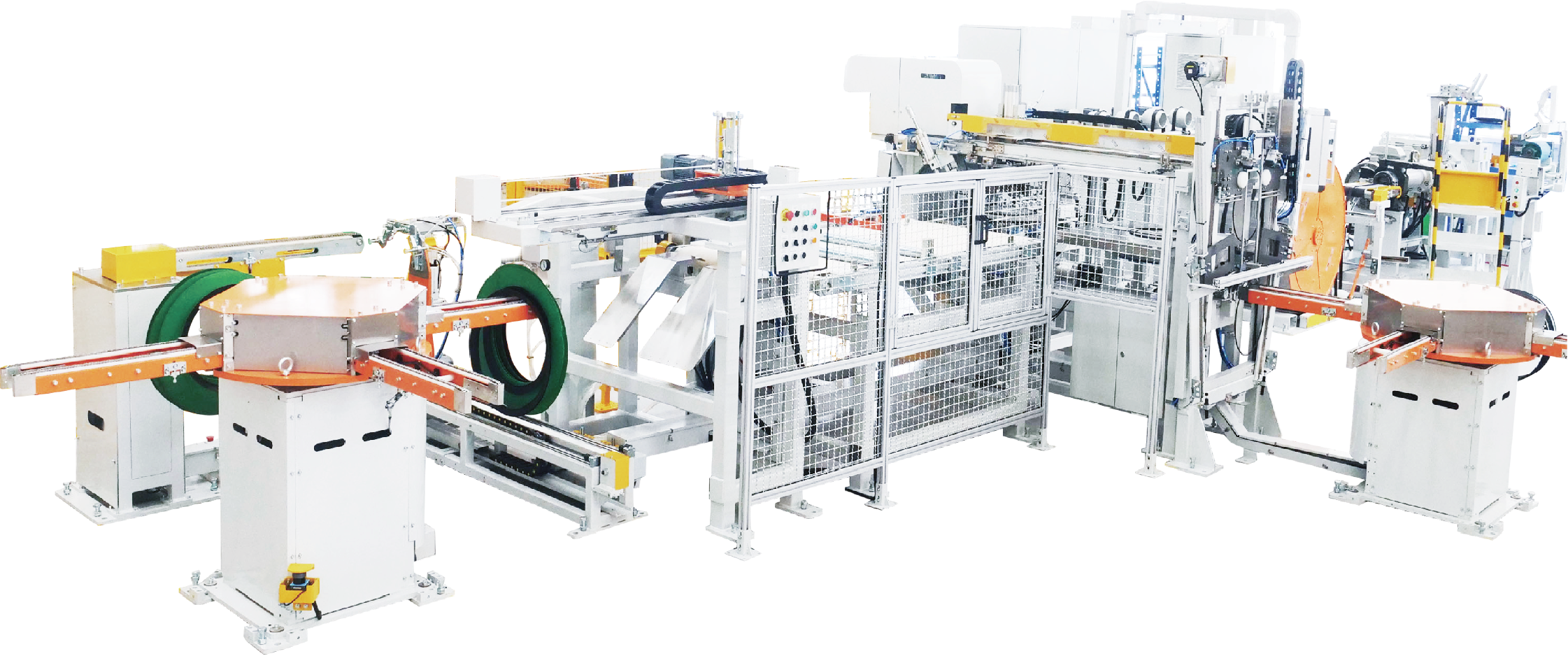

Automatic horizontal bead apexing lines for PCR tires

PCR horizontal bead automatic manufacturing machine is used to produce tire bead for semi-steel tire by horizontal laminating process.

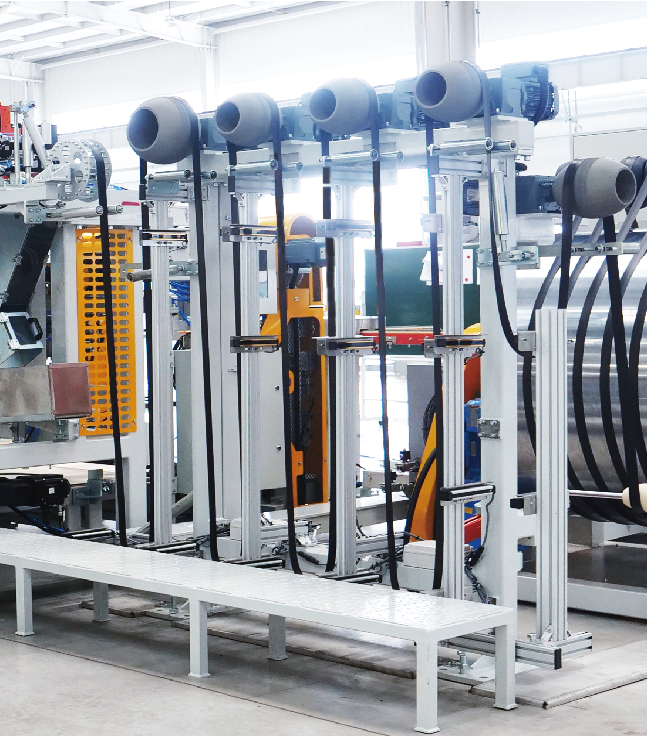

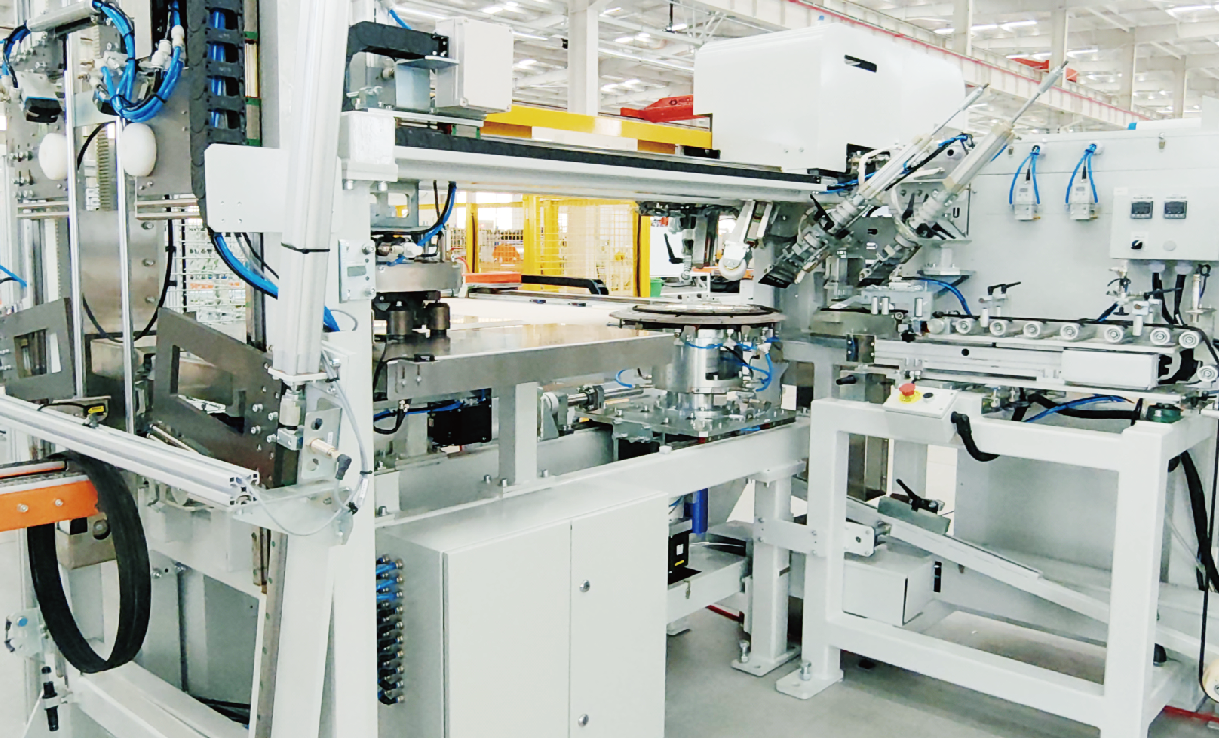

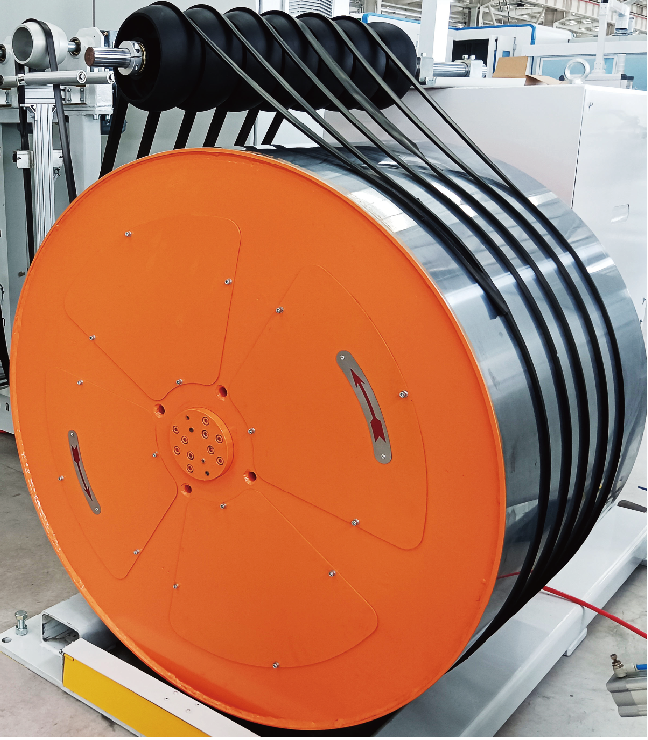

The PCR horizontal machine is composed of extruder, Cooling drum, storage device, intercepting and shrinking device, fit the host, wire ring hanger, wire ring conveying, tire bead conveying, tire bead hanger, isolation plate hanger, isolation plate conveying, etc., and interconnecting with the factory MES system, can realize the digital management and intelligent control, improve production efficiency and accuracy, and reduce management costs. Improve the competitiveness and sustainable development ability of enterprises.

Request a Quote Now

Core Strengths

01
More intelligent
The replacement specification is convenient, and canbe switched with one key;
02
Full-automatic
Realize joint pressing, fitting on, unloading tire bead,transporting automatically to cache library when tire bead tray is full;
03
Higher stability
Equipped with pre-maintenance and self-diagnosissystem, real-time detection of core components;
04
Higher efficiency
Cycle time<7 seconds/pc;
05
Low energy consumption
​Equipped with energy managementsystem, real-time monitoring equipment energy consumption.

Technical Specifications

Item

Parameter

Uni

Remark

Bead diamete

12~28 英寸 12”~20”、19”~24”、21~28”

Apex height

15~65 mm

cycle tim

7 秒/个

Lap joint accuracy

≤1 mm

Dog ear accurac

≤2 mm
