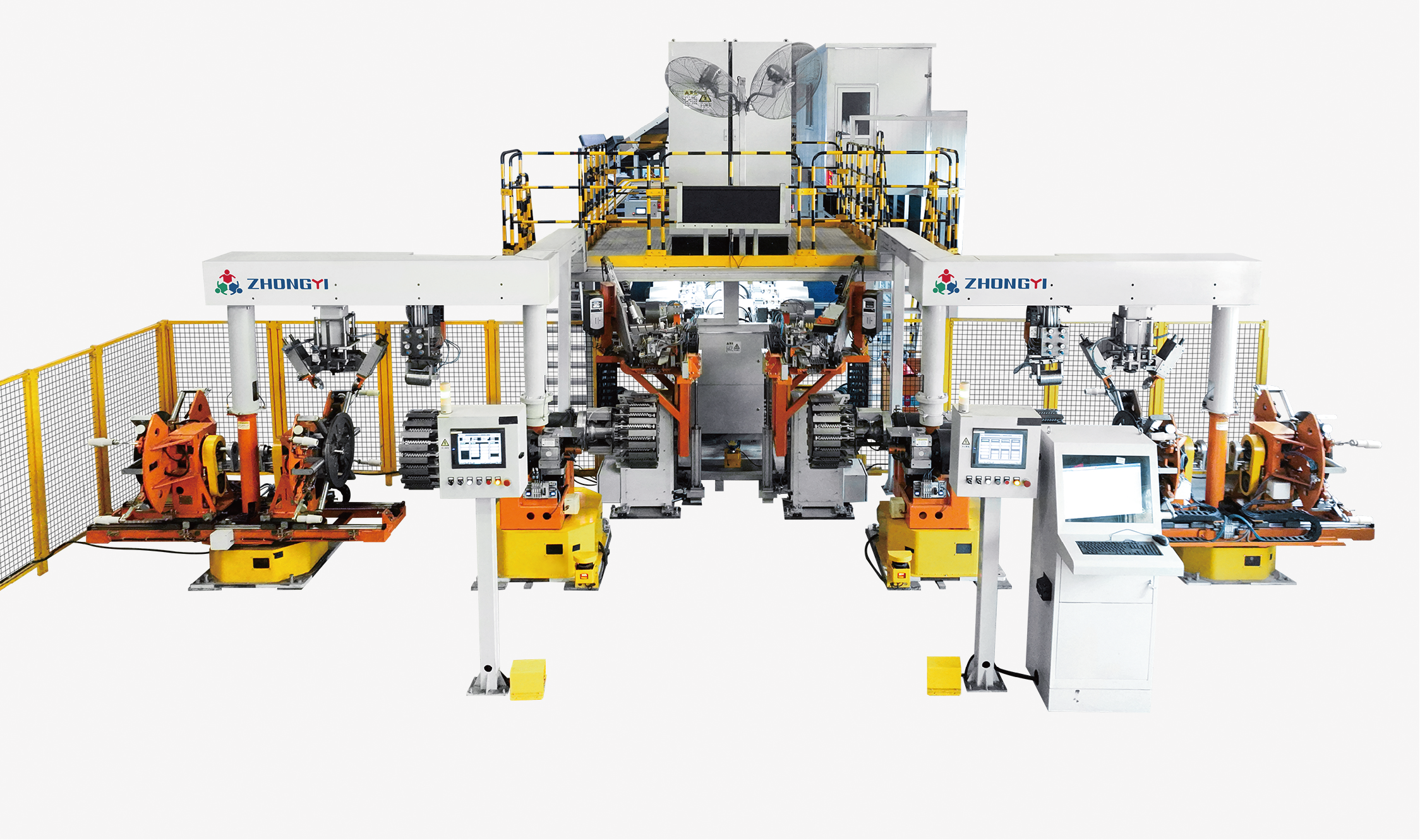

Automatic vertical bead apexing lines for TBR

TBR-APEX vertical four-drum laminator linkage line is mainly used in all-steel tires, engineering tires, giant tires.

The production line adopts the self-developed double-station circular laminating reverse bag mechanical drum, which can realize the continuous production of multi-inch tire rings. It is an intelligent production line with convenient specification switching, unmanned operation and visualization of production information.

Request a Quote Now

Core Strengths

01
More intelligent
Full-automatic online splice quality detection;
02
Higher stability
Higher positioning accuracy; apex jointaccuracy:s2mm;
03
Higher efficiency
Intelligent maintenance;
04
Higher safety
Perfect security solution.

Technical Specifications

Item

Argument

Unit

Remark

Production line size

32×15.3×4.3 m

Length × width × height

bead diameter

16~24.5

inches


cycle time

11

s/p

double-station
